Product Summary
The EP1S20F780C7 is Stratix Device. The EP1S20F780C7 is based on a 1.5 V, 0.13 μm, all-layer copper SRAM process, with densities of up to 79,040 logic elements (LEs) and up to 7.5 Mbits of RAM. Stratix devices offer up to 22 digital signal processing (DSP) blocks with up to 176 (9-bit x 9-bit) embedded multipliers, optimized for DSP applications that enable efficient implementation of high-performance filters and multipliers. Stratix EP1S20F780C7 supports various I/O standards and also offer a complete clock management solution of the EP1S20F780C7 with its hierarchical clock structure with up to 420-MHz performance and up to 12 phase-locked loops (PLLs).
Parametrics
EP1S20F780C7 maximum ratings: (1)VCCINT, supply voltage with respect to ground: -0.5 to 2.4V; (2)VCCIO: -0.5 to 4.6V; (3)VI, DC input voltage: -0.5 to 4.6V; (4)IOUT, DC output, per pin: -25 to 40mA; (5)TSTG, storage temperature when no bias: -65 to 150℃; (6)TJ, junction temperature when BGA package under bias: 135℃.
Features
EP1S20F780C7 features: (1)10,570 to 79,040 LEs; (2)Up to 7,427,520 RAM bits (928,440 bytes) available without reducing logic resources; (3)TriMatrixTM memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO)buffers; (4)High-speed DSP blocks provide dedicated implementation of multipliers (faster than 300 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters; (5)Up to 16 global clocks with 22 clocking resources per device region; (6)Up to 12 PLLs (four enhanced PLLs and eight fast PLLs) per device provide spread spectrum, programmable bandwidth, clock switchover, real-time PLL reconfiguration, and advanced multiplication and phase shifting; (7)Support for numerous single-ended and differential I/O standards; (8)High-speed differential I/O support on up to 116 channels with up to 80 channels optimized for 840 megabits per second (Mbps).

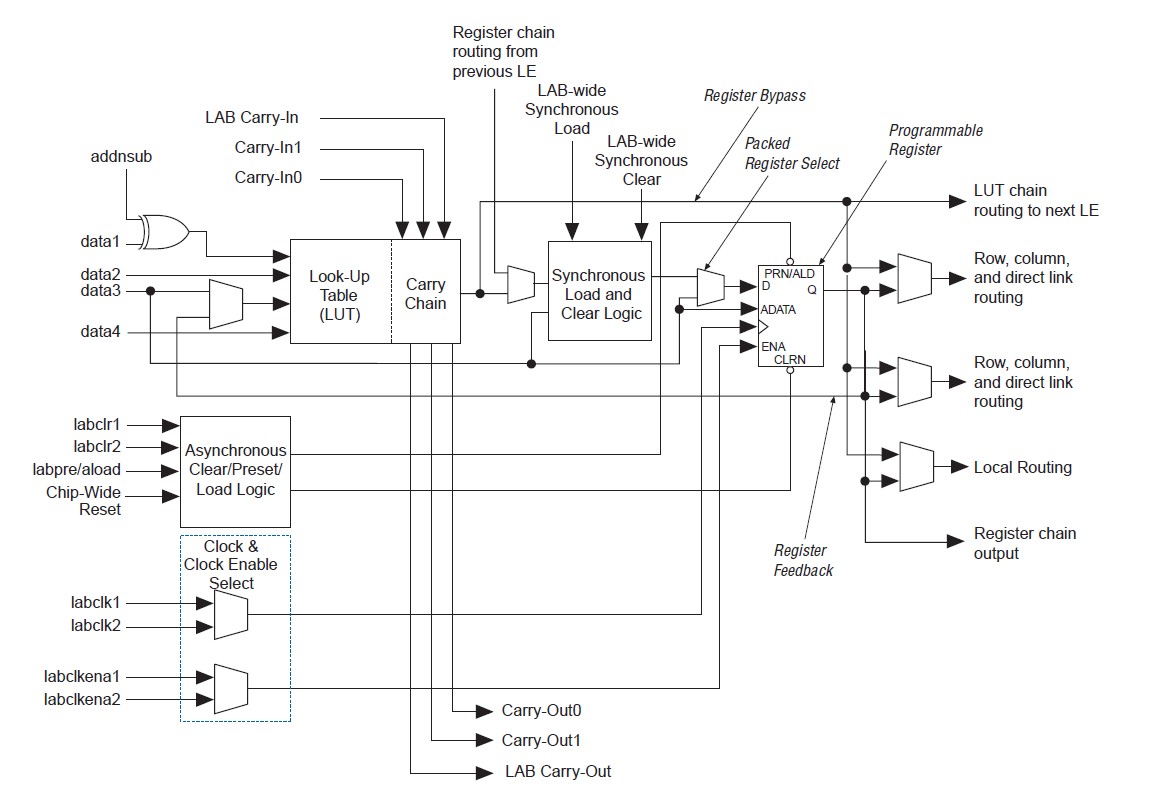

Diagrams
