DS3231SN

Product Summary

The DS3231SN is an extremely accurate I2C-integrated RTC/TXO/Crystal. The DS3231SN is a low-cost, extremely accurate I2C realtime clock (RTC) with an integrated temperaturecompensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, and maintains accurate timekeeping when main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The DS3231SN is available in commercial and industrial temperature ranges, and is offered in a 16-pin, 300-mil SO package. The RTC maintains seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. Two programmable time-ofday alarms and a programmable square-wave output are provided. Address and data are transferred serially through an I2C bidirectional bus.

Parametrics

DS3231SN absolute maximum ratings: (1)Voltage Range on VCC, VBAT, 32kHz, SCL, SDA, RST, INT/SQW Relative to Ground: -0.3V to +6.0V; (2)Operating Temperature Range(noncondensing): -40℃ to +85℃; (3)Junction Temperature: +125℃; (4)Storage Temperature Range: -40℃ to +85℃; (5)Lead Temperature (Soldering, 10s): +260℃/10s; (6)Soldering Temperature: See the Handling.

Features

DS3231SN features: (1)Accuracy ±2ppm from 0℃ to +40℃; (2)Accuracy ±3.5ppm from -40℃ to +85℃; (3)Battery Backup Input for Continuous Timekeeping; (4)Operating Temperature RangesCommercial: 0℃ to +70℃Industrial: -40℃ to +85℃; (5)Low-Power Consumption; (6)Real-Time Clock Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year Compensation Valid Up to 2100; (7)Two Time-of-Day Alarms; (8)Programmable Square-Wave Output; (9)Fast (400kHz) I2C Interface; (10)3.3V Operation; (11)Digital Temp Sensor Output: ±3℃ Accuracy; (12)Register for Aging Trim; (13)RST Input/Output; (14)UL Recognized.

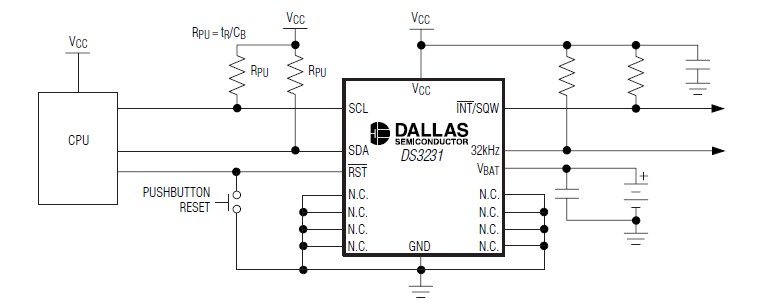

Diagrams
