Product Summary
The AD8392AAREZ is a amp, dual-channel ADSL/ADSL2+ line driver. It is comprised of four high output current, low power consumption, operational amplifiers. It is particularly well suited for the CO driver interface in digital subscriber line systems, such as ADSL and ADSL2+. The driver is capable of providing enough power to deliver 20.4 dBm to a line. Applications of the AD8392AAREZ include: ADSL/ADSL2+ CO line drivers; XDSL line drives.
Parametrics
AD8392AAREZ absolute maxing ratings: (1)Supply Voltage: ±13 V (+26 V); (2)Storage Temperature Range: -65℃ to +150℃; (3)Operating Temperature Range: -40℃ to +85℃; (4)Lead Temperature (Soldering 10 sec): 300℃; (5)Junction Temperature: 150℃.
Features
AD8392AAREZ features: (1)Four current feedback, high current amplifiers; (2)Ideal for use as ADSL/ADSL2+ dual-channel central office(CO) line drivers; (3)Low power operation; (4)Power supply operation from ±5 V (+10 V) up to ±12 V (+24 V); (5)Less than 3 mA/amp quiescent supply current for full power ADSL/ADSL2+ CO applications (20.4 dBm line power, 5.5 CF).

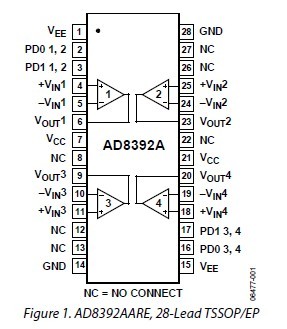

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8392AAREZ |
|
IC ADSL/ADSL2 LINE DRVR 28-TSSOP |
Data Sheet |
|
|
||||||
|
AD8392AAREZ-R7 |
|
IC LINE DRVR ADSL/ADSL 28-TSSOP |
Data Sheet |
|
|
||||||
|
AD8392AAREZ-RL |
|
IC LINE DRVR ADSL/ADSL 28-TSSOP |
Data Sheet |
|
|
||||||
