Product Summary

The EP82562G is a 14 Pin DIP TTL Square-Wave Generator.

Parametrics

EP82562G specifications: (1)VCC Supply Voltage: min=4.75V, max=5.25V; (2)VIH High-Level Input Voltage: min=2.0V; (3)VIL Low-Level Input Voltage: max=0.8V; (4)IIK Input Clamp Current: max=-18mA; (5)IOH High-Level Output Current: max=-1.0mA; (6)IOL Low-Level Output Current: max=20mA; (7)d Duty Cycle: min=45%, max=55%; (8)TA Operating Free-Air Temperature: min=0, max=+70℃.

Features

EP82562G features: (1)Output frequencies from 2 to 100 MHz ±5%; (2)Low Profile 14 pin dual-in-line package; (3)Operating temperature range 0 to 70℃; (4)Output synchronized using enable line; (5)Inherent Delay 4nS Typ.; (6)50% duty cycle; (7)Schottky TTL.

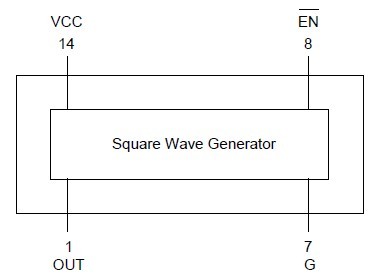

Diagrams
