Product Summary
The MT8816AE1 is fabricated in the ISOCMOS technology of Zarlink providing low power dissipation and high reliability. The device contains a 8 x 16 array of crosspoint switches along with a 7 to 128 line decoder and latch circuits. The applications of the MT8816AE1 include: (1)Key systems; (2)PBX systems; (3)Mobile radio; (4)Test equipment/instrumentation; (5)Analog/digital multiplexers; (6)Audio/Video switching.
Parametrics
MT8816AE1 absolute maxing ratings: (1)Supply Voltage VDD: min=-0.3V, max=16.0V; VSS: min=-0.3V, max=VDD+0.3V; (2)Analog Input Voltage VINA: min=-0.3V, max=VDD+0.3V; (3)Digital Input Voltage VIN: min=VSS-0.3V, max=VDD+0.3V; (4)Current on any I/O Pin I: max=±15mA; (5)Storage Temperature TS: min=-65℃, max=+150℃; (6)Package Power Dissipation PLASTIC DIP PD: max=0.6W.
Features
MT8816AE1 features: (1)Internal control latches and address decoder; (2)Short set-up and hold times; (3)Wide operating voltage: 4.5 V to 13.2 V; (4)12Vpp analog signal capability; (5)RON 65Ωmax. @ VDD = 12 V, 25℃; (6)△RON≤10Ω @ VDD = 12 V, 25℃; (7)Full CMOS switch for low distortion; (8)Minimum feedthrough and crosstalk; (9)Separate analog and digital reference supplies; (10)Low power consumption ISO-CMOS technology.

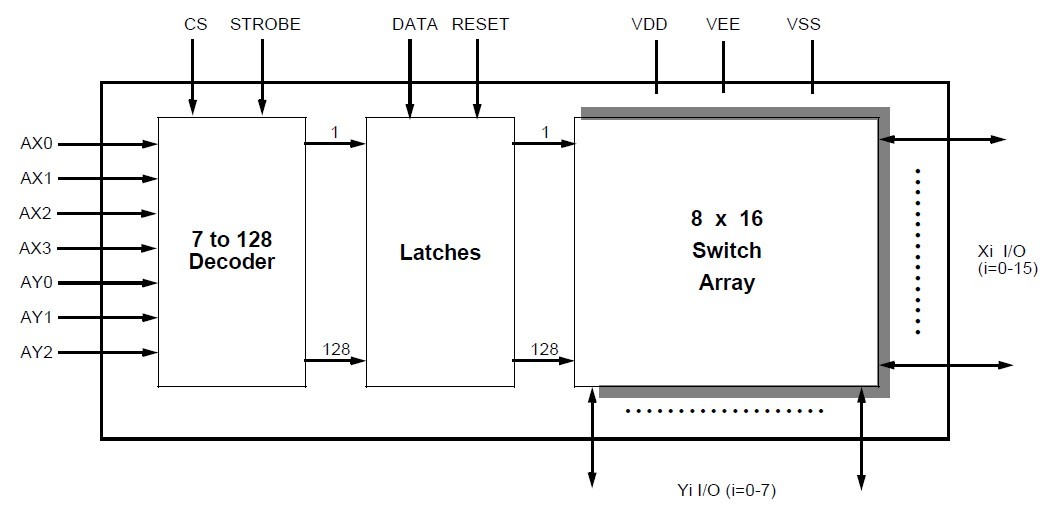

Diagrams
