Product Summary

The CXA2205Q is a bipolar IC designed as EIAJ TV sound multiplexing decoder, provides various functions including sound multiplexing demodulation, broadcast mode identification (stereo/bilingual discrimination display), mode display, and muting. The applications of the CXA2205Q include: Color TVs, Hi-Fi VCRs.

Parametrics

CXA2205Q absolute maxing ratings: (1)Supply voltage Vcc: 10V; (2)Input signal (Pin 7) Vis: 0.6Vp-p; (3)Control voltage(Pins 6, 16, 17, 18) Vic: Vcc V; (4)Operating temperature Topr: -20 to +75℃; (5)Storage temperature Tstg: -65 to +150℃; (6)Allowable power dissipation PD: 1000mW; (7)LED drive current ILED: 10mA.

Features

CXA2205Q features: (1)Adjustment free of filter; (2)High frequency stereo separation improved; (3)An internal active filter greatly reduces the external parts; (4)Use of the countdown method for broadcast mode identification eliminates the necessity of adjusting the identification system (Cue oscillator); (5)Internal filter eliminates interference from digital facsimile signals; (6)Output level: 520mVrms (1kHz, monaural, 100%).

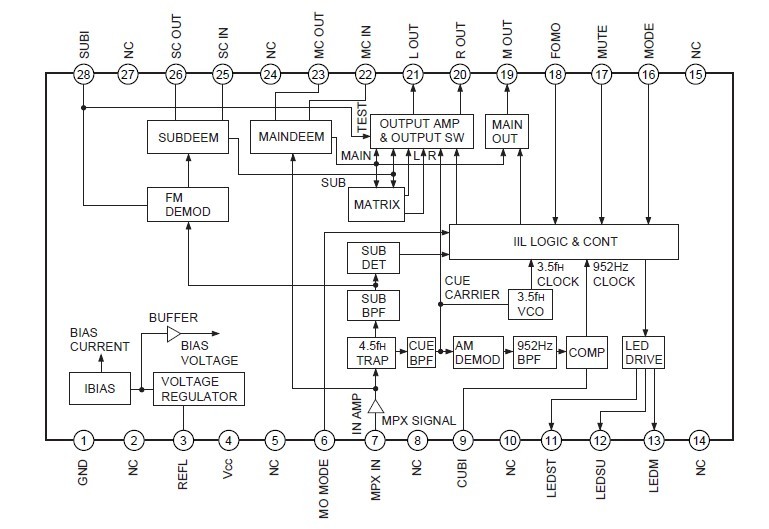

Diagrams
