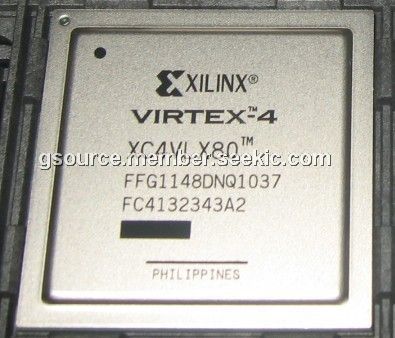

XC4VLX80-10FFG1148C

Product Summary

The XC4VLX80-10FFG1148C is the newest generation FPGA from Xilinx. The innovative Advanced Silicon Modular Block or ASMBL column-based architecture is unique in the programmable logic industry. Virtex-4 FPGAs contain three families (platforms): LX, FX, and SX Choice and feature combinations are offered for all complex applications. A wide array of hard-IP core blocks complete the system solution. These cores include the PowerPC processors (with a new APU interface), Tri-Mode Ethernet MACs, 622 Mb/s to 11.1 Gb/s serial transceivers, voltage/temperature system monitor blocks, dedicated DSP slices, high-speed clock management circuitry, and source-synchronous interface blocks. The basic Virtex-4 building blocks of the XC4VLX80-10FFG1148C are an enhancement of those found in the popular Virtex-based product families: Virtex, Virtex-E, Virtex-II, Virtex-II Pro, and Virtex-II Pro X, allowing upward compatibility of existing designs. Virtex-4 devices of the XC4VLX80-10FFG1148C are produced on a state-of-the-art 90-nm copper process, using 300 mm (12 inch) wafer technology. Combining a wide variety of flexible features, the Virtex-4 family enhances programmable logic design capabilities and is a powerful alternative to ASIC technology.

Parametrics

XC4VLX80-10FFG1148C maximum ratings: (1)Frequency 400 MHz ; (2)Supply Voltage (DC) 1.20 V ; (3)Operating Temperature 0.0 to 85.0℃; (4)Lead-Free Status Lead Free ; (5)Mounting Type Surface Mount ; (6)Packaging Tray ; (7)RoHS Compliant.

Features

XC4VLX80-10FFG1148C features: (1)Xesium TM Clock Technology; (2)XtremeDSP TM Slice; (3)Smart RAM Memory Hierarchy; (4)SelectIO Technology; (5)Flexible Logic Resources; (6)Built-in System Monitor (voltage/temp. measurement); (7)10-bit, 200kSPS A/D Converter (ADC); (8)Secure Chip AES Bitstream Encryption; (9)90-nm copper CMOS process; (10)1.2V core voltage; (11)Flip-Chip Packaging; (12)RocketIO622 Mb/s to 11.1 Gb/s Multi-Gigabit Transceivers(MGT) (FX only).

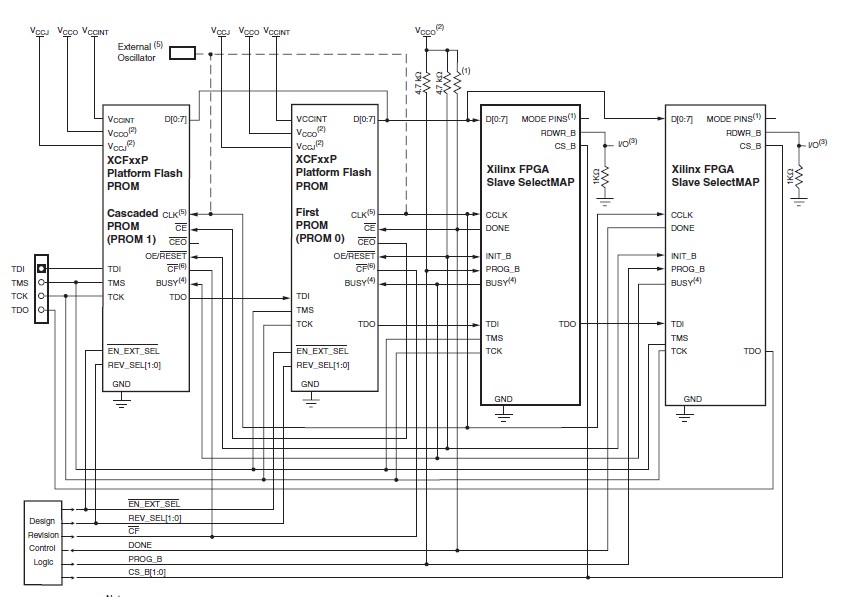

Diagrams
