Product Summary
The FWIXP425BD is a control plane processor. The applications of it include: (1)High-Performance DSL Modem; (2)High-Performance Cable Modem; (3)Residential Gateway; (4)SME Router; (5)Network Printers; (6)Control Plane; (7)Integrated Access Device (IAD); (8)Set-Top Box; (9)Access Points (802.11a/b/g); (10)Industrial Controllers.
Parametrics
FWIXP425BD absolute maxing ratings: (1)Ambient Air Temperature (Extended): -40℃ to 85℃; (2)Ambient Air Temperature (Commercial): 0℃ to 70℃; (3)Supply Voltage Core: -0.3V to 2.1V; (4)Supply Voltage I/O: -0.3V to 3.6V; (5)Supply Voltage Oscillator (VCCOSC): -0.3V to 2.1V; (6)Supply Voltage Oscillator (VCCOSCP): -0.3V to 3.6V; (7)Supply Voltage PLL (VCCPLL1: -0.3V to 2.1V; (8)Supply Voltage PLL (VCCPLL2): -0.3V to 2.1V; (9)Voltage On Any I/O Ball: -0.3V to 3.6V; (10)Storage Temperature: -55℃ to 125℃.
Features
FWIXP425BD features: (1)PCI Interface; (2)USB v1.1 Device Controller; (3)SDRAM Interface; (4)High-Speed UART; (5)Console UART; (6)Internal Bus Performance Monitoring Unit; (7)16 GPIOs; (8)Four Internal Timers; (9)Packaging—492-pin PBGA; (10)Commercial/Extended Temperature; (11)Two High-Speed, Serial Interfaces; (12)Three Network Processor Engines; (13)Up to two MII Interfaces; (14)One UTOPIA-2 Interface; (15)Multi-Channel HDLC.

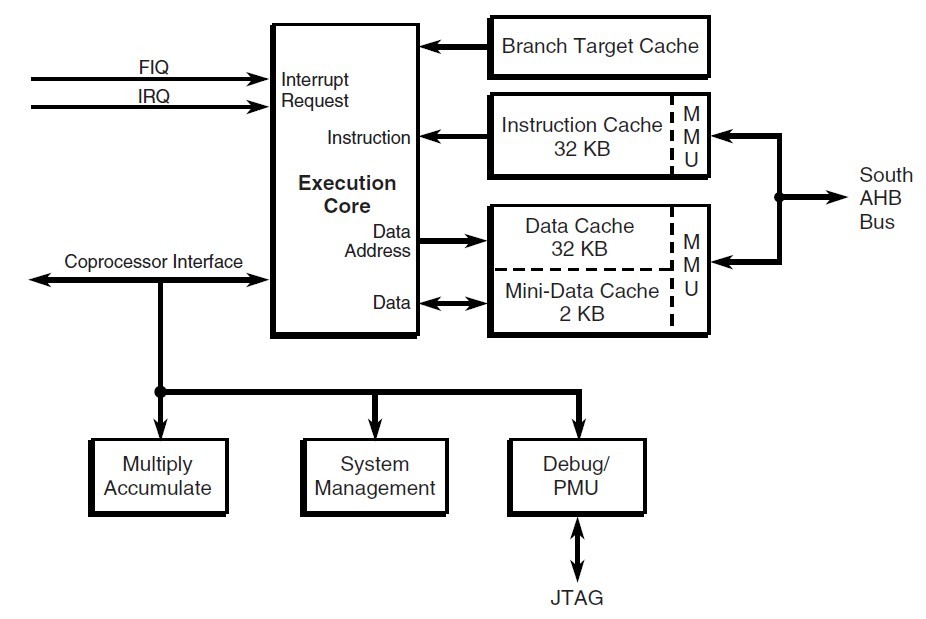

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FWIXP425BD |
IC NETWRK PROCESSR 533MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
FWIXP420BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||||||||||||
FWIXP420BC |
IC NETWRK PROCESSR 400MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||||||||||||
FWIXP420BD |
IC NETWRK PROCESSR 533MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||||||||||||
FWIXP421BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
|
|
||||||||||||||||
FWIXP422BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
Negotiable |
|
||||||||||||||||
FWIXP425BB |
IC NETWRK PROCESSR 266MHZ 492BGA |
Data Sheet |
|
|
