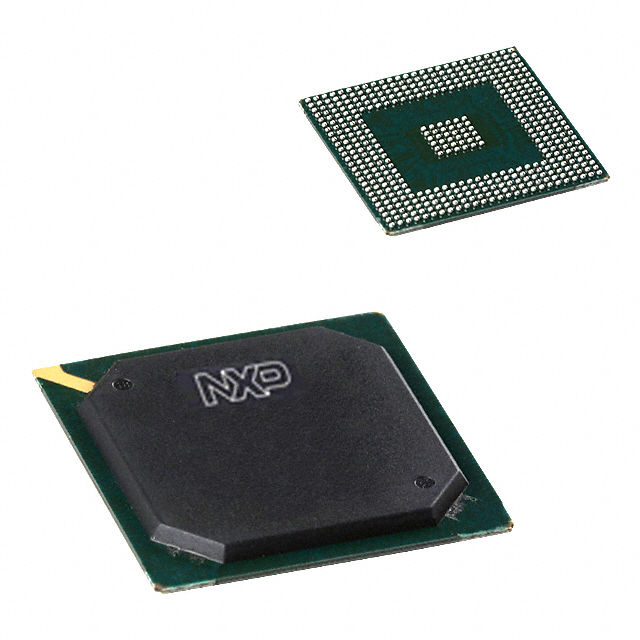

PNX1501E

Audio/Video/Graphics system, bga, -0.5 to 4.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~15.00

PartNumber:: PNX1501E

Brand:: Philips Electronics India Limited - PHILIPS | Pack: BGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sunny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-21

From Other Seller

Part Number:PNX1501E
US $8.00 - 15.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PNX1501E is a complete Audio/Video/Graphics system on a chip that contains a high-performance 32-bit VLIW processor, TriMedia TM3260, capable of high quality software video (multi-video standard digital decoder/encoder and image improvement), audio signal processing, as well as general purpose control processing. The PNX1501E can either be used in standalone, or as an accelerator to a general purpose processor.

Parametrics

PNX1501E absolute maxing ratings: (1)VCCP 3.3V I/O supply voltage: min=-0.5V, max=4.6V; (2)VCCM 2.5V DDR I/O supply voltage: min=-0.5V, max=3.6V; (3)VDD 1.2-1.3-V Core supply voltage: min=-0.5V, max=1.7V; (4)VICCP Input voltage for 5 V tolerant input pins (i.e. pins supplied by VCCP): min=-0.5V, max=6.0V; (5)Tstg Storage temperature range: min=-65℃, max=150℃; (6)Tcase Operating case temperature range: min=0, max=120℃; (7)HBMESD Human Body Model Electrostatic handling for all pins: max=2000V; (8)MMESD Machine Model Electrostatic handling for all pins: max=150V.

Features

PNX1501E features: (1)Receives digital video data from the video port. The data stream may come from a device such as the TDA8751, which can digitize analog video from any source and convert a digital signal from a DVI interface/source into parallel YUV format; (2)Features 8/10-bit single channel (single-stream) and 16/20-bit dual channel (dual-stream) capture of CCIR601 YUV 4:2:2 video input with embedded or explicit syncs, supported by a maximum clock frequency of 81 MHz. The DUAL_STREAM mode is used to capture a 16 or 20-bit HD stream where 8/10-bit Y and 8/10-bit multiplexed U/V data are received and captured on two separate channels.
