Product Summary
The M52758FP is a semiconductor integrated circuit for the RGBHV interface. The device features switching signals input from two types of image and outputting them to CRT display etc. Synchronous signal meeting the frequency band of 10KHz to 200MHz are output at TTL. The frequency band of video signals is 250MHz, acquiring high-resolution images and are optimu, as an interface IC with high-resolution CRT display and various new media. The application of the M52758FP include display monitor.
Parametrics
M52758FP absolute maxing ratings: (1)VCC supply voltage: 7.0V; (2)Pd Power dissipation: 1068mW(FP), 1063mW(SP); (3)Topr ambient temperature: -20 to +85℃; (4)Tstg storage temperature: -40 to +150℃; (5)Vopr recommended supply voltage: 5.0V; (6)Vopr recommended supply voltage range: 4.75 to 5.5V; (7)Surge electrostatic discharge: +200V.
Features
M52758FP features: (1)Frequency band: RGB: 250MHz; HV: 10Hz to 200kHz; (2)Input level: RGB: 0.7Vp-p(typ); HV: TTL input 2.0Vo-p(both channel); (3)Only the G channel is provided with syncon video output; (4)The TTL format is adopted for HV output.

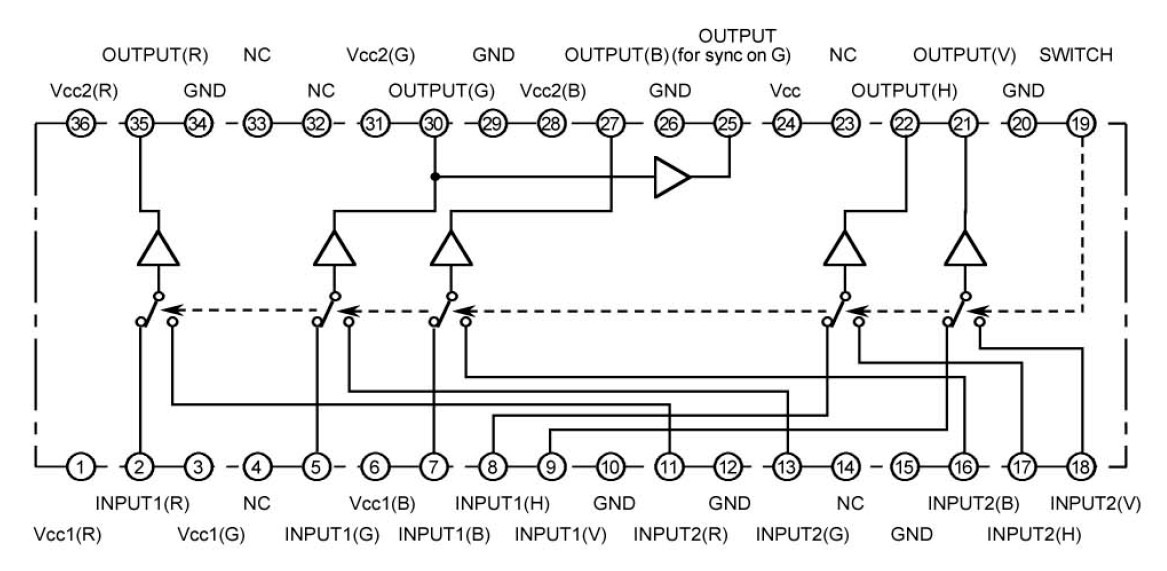

Diagrams
