Product Summary

The SN65HVD230DR is a 3.3V transceiver. It controller area network (CAN) transceivers are designed for use with the Texas Instruments TMS320Lx240x; 3.3-V DSPs with CAN controllers, or with equivalent devices. It is intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard. The applications of the SN65HVD230DR include: (1)Motor Control; (2)Industrial Automation; (3)Basestation Control and Status; (4)Robotics; (5)Automotive; (6)UPS Control.

Parametrics

SN65HVD230DR absolute maxing ratings: (1)Supply voltage range, VCC: -0.3 V to 6 V; (2)Voltage range at any bus terminal (CANH or CANL): -4 V to 16 V; (3)Voltage input range, transient pulse, CANH and CANL, through 100 W: -25 V to 25 V; (4)Input voltage range, VI (D or R): -0.5 V to VCC + 0.5 V; (5)Receiver output current, IO: ±11 mA; (6)Electrostatic discharge Human body model CANH, CANL and GND: 16 kV; All Pins 4 kV; Charged-device model All pins: 1 kV.

Features

SN65HVD230DR features: (1)Unpowered Node Does Not Disturb the Bus; (2)Compatible With the Requirements of the ISO11898 Standard; (3)Low-Current SN65HVD230 Standby Mode 370 mA Typical; (4)Low-Current SN65HVD231 Sleep Mode 40 nA Typical; (5)Designed for Signaling Rates(1) up to 1 Megabit/Second (Mbps); (6)Thermal Shutdown Protection; (7)Open-Circuit Fail-Safe Design; (8)Glitch-Free Power-Up and Power-Down Protection for Hot-Plugging Applications.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

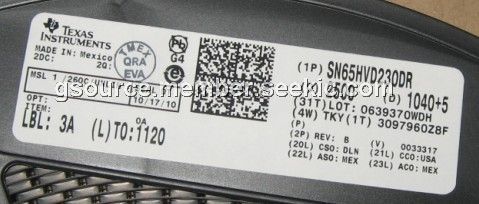

SN65HVD230DR
SN65HVD230DR

Texas Instruments

CAN Interface IC STANDBY MODE

Data Sheet

0-1: $1.97
1-25: $1.80
25-100: $1.66
100-250: $1.15
SN65HVD230DRG4
SN65HVD230DRG4

Texas Instruments

CAN Interface IC STANDBY MODE

Data Sheet

0-960: $1.25
960-1000: $1.09
1000-2000: $1.06
2000-2500: $1.06
